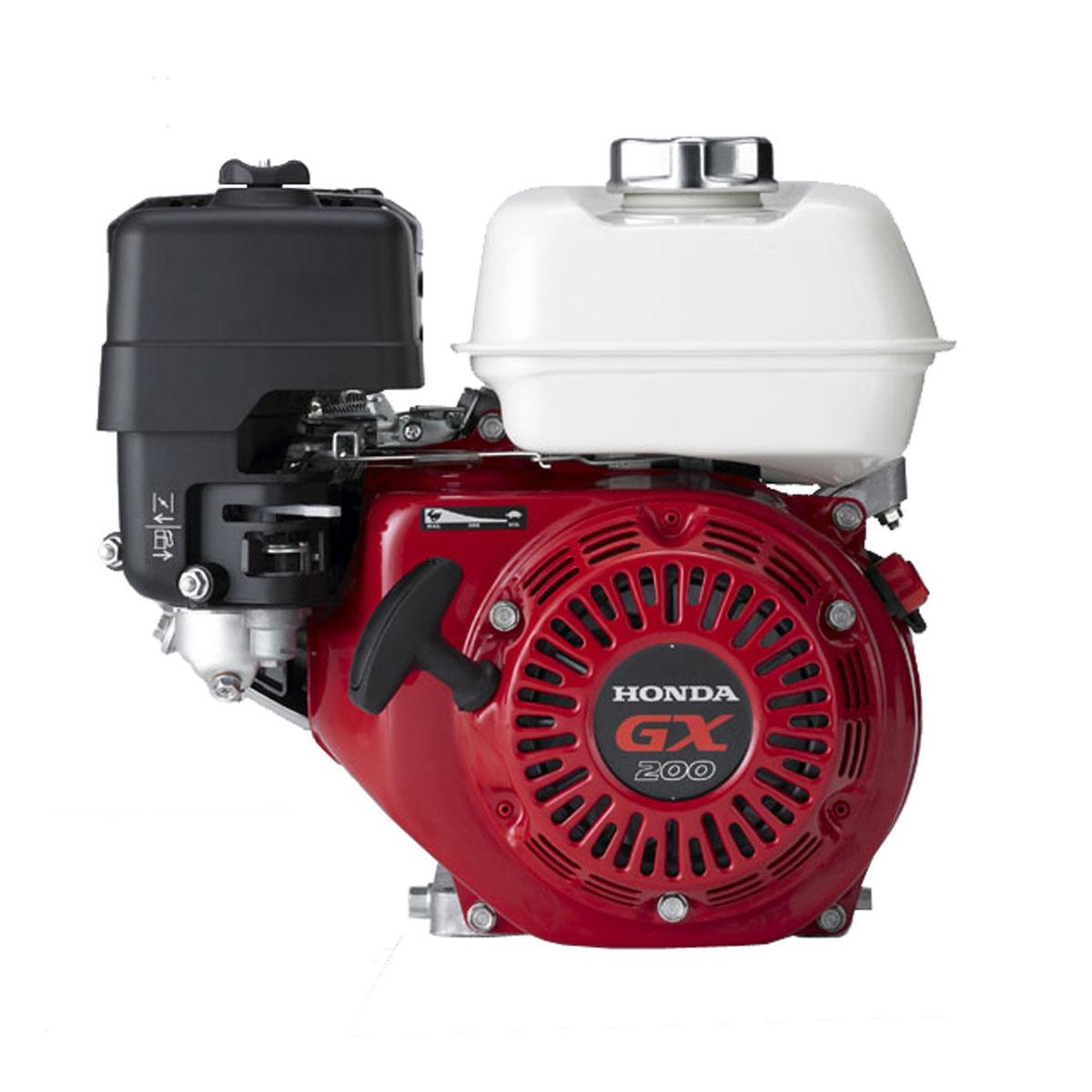

5.5 NET HP HONDA® ENGINE, 196CC (GX200QXEB)

Part: GX200-QXEB

The GX Series has proven itself as one of the most rugged, easy-starting and reliable engines around. Trades people stake their livelihood on them day after day. With a wide range of selections there's a GX Series engine for almost any application. Newly designed for better noise levels and emissions, the GX200 is a serious performer that doesn't sacrifice power when it counts.

Features: Horizontal crankshaft, Precision camshaft design for precise valve timing and optimal valve overlap, Ball-bearing supported crankshaft for improved stability, Dual oil drains and fill, Multiple charging coil options, Large-capacity, multi-chamber exhaust system

Common Applications: Agricultural equipment, Commercial lawn and garden equipment, Construction/industrial equipment, Forestry equipment, Generators, Pressure washers, Tillers/cultivators, Water pumps

Features & Specifications

Model: GX200QXEB

Engine Type: Air-cooled 4-stroke OHV

Bore x Stroke: 68 mm x 54 mm

Displacement: 196 cc

Net Power Output*: 5.5 HP (4.1 kW) @ 3,600 rpm

Net Torque: 9.1 lb-ft (12.4 Nm) @ 2,500 rpm

PTO Type: Straight

PTO Shaft Rotation: Counterclockwise (from PTO shaft side)

PTO Diameter/Taper: 19.05 mm (0.75")

PTO Bolt Size: 5/16-24 UNF

Centrifugal Clutch: No

Keyway: Yes

Compression Ratio: 8.5:1

Fuel Tank Capacity: 3.1 litres (3.3 US qts)

Lamp/Charge Coil Options: 25W, 50W / 1A, 3A, 7A

Carburetor: Butterfly

Electric Starter: Yes

Recoil Starter: Yes

Control Box c/w Ign. Switch: Control Box

Remote Throttle: No

Lever Throttle: Yes

Lever Choke: Yes

Oil Alert (Shutdown): No

Ignition System: Transistorized magneto

Starting System: Recoil starter

Lubrication System: Splash

Governor System: Mechanical

Air Cleaner: Dual element

Air Filter Type: Silent

Muffler: Standard

Charge Coil: 18A

Regulator / Rectifier: Std (20A)

Oil Capacity: 0.6 litres (0.63 US qts)

Fuel: Unleaded 86 octane or higher

Dry Weight: 16.1 kg (35 lbs)

$1,748.00
