GRAVELY MODEL AND SERIAL NUMBER LOCATIONS

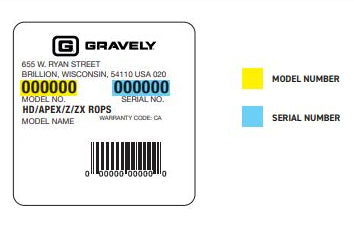

Your equipment should contain a model and serial number label similar to the one on the styles below.
Model numbers are six digits in length and begin with the number “9” (except very early models).
For help in locating the model and serial number label, please refer to the page that closest describes your equipment.

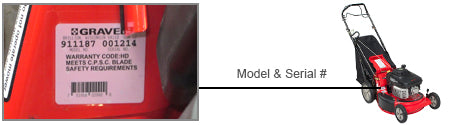

Walk Behind Mowers
The model & serial number for a Gravely walk behind mower is printed on a sticker on the back of the deck behind the engine.

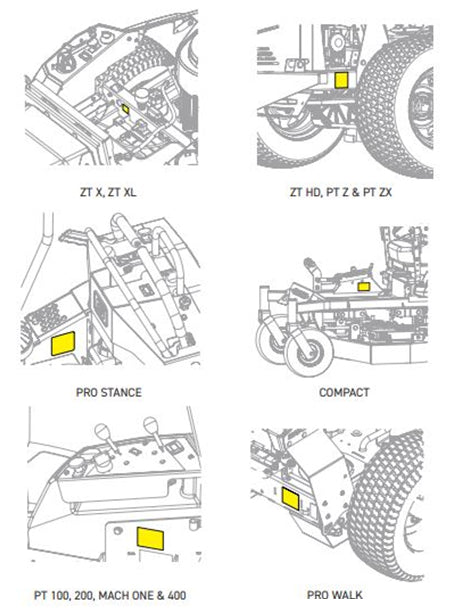

Zero-Turn Mowers
Model and Serial Number labels for the Zero-Turn product line are located on the main frame of the unit.
ZT X, ZT XL
The model & serial number of the ZT X & ZT XL can be located on the frame underneath the seat. Lift the seat to access the sticker.
ZT HD, Pro-Turn Z & Pro-Turn ZX
The model & serial number can of the ZT HD, Pro-Turn Z & Pro-Turn ZX can be located on the right fender beside the rear right wheel.
Pro Walk
The model & serial number of the Pro Walk can be located on the frame at the rear.
Pro Stance
The model & serial number can of the Pro Stance can be located on the on the inside of the right fender. Below the deck height adjustment.
Compact
The model & serial number can of the Compact can be located on the on the inside of the right fender. Below the deck height adjustment.
Pro-Turn 100, 200, Mach one & 400
The model & serial number of the Pro-Turn 100, 200, Mach one & 400 can be located on the frame underneath the seat. Lift the seat to access the sticker.
